Traditional 75 Single Wheel

Sales are made to commercial customers only.

Technical Details

Product Type Furniture or Chair Caster
Wheel diameter 75mm | 3"
Load capacity 100kg | 220 lbs.
Overall height with fixing 82.5mm

Wheel:


Wheel type hardwheel
Wheel color Black

Housing:


Housing form unhooded
Neck diameter 20mm
Housing material High quality nylon
Housing color Black
Mobility concept Freewheel
Fixing 11x22mm Push-fit stem
Description DK575-3X2B-HTR

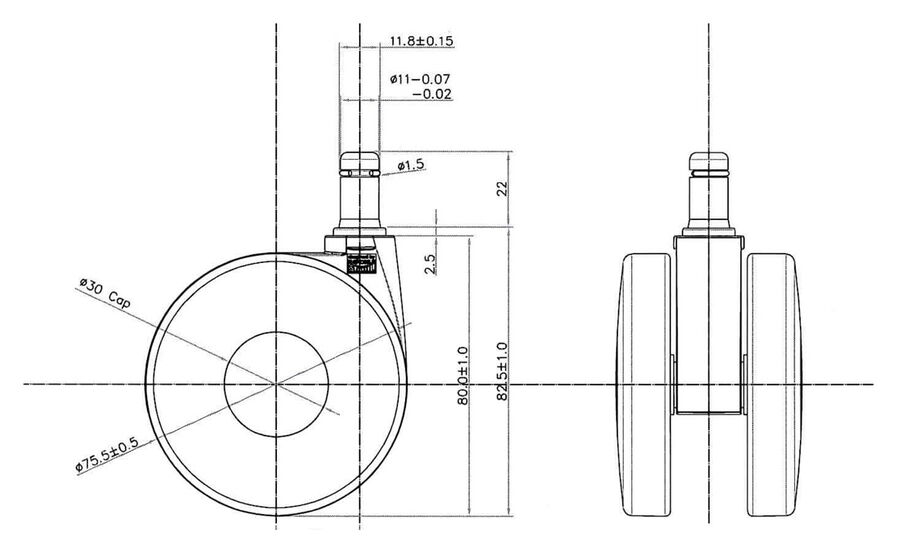

Technical Drawing

Fixings

Compatible with the following available fixings:

Push fit stems:

  • 10x20mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x22mm with 11.8 banded K290 4A
  • 11x26mm

Threaded stems:

  • 3/8-16x1"
  • 3/8x1"

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
