Traditional 75 classic

The reliable caster with classic wheels. MOVE wheels have a slimmer design, available in a bulbous or flat design.

The standard stopper brake ensures that the caster and the piece of furniture will not roll away.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture or Chair Caster
Wheel diameter 75mm | 3"
Load capacity 75kg | 165 lbs.
Overall height with fixing 82,15

Wheel:


Wheel type Soft wheel
Wheel core / tread color Black / Black

Housing:


Housing form unhooded
Neck diameter 21.9mm
Housing material High quality nylon
Housing color Black
Mobility concept Stopper brake, Black
Fixing 11x22mm Push -fit stem
Description TUKF74-2X2B

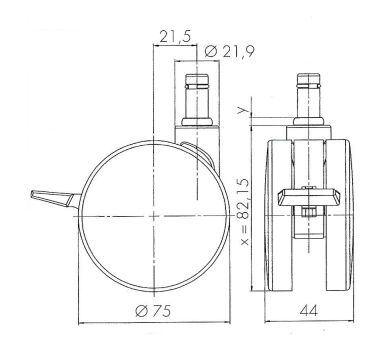

Technical Drawing

Fixings

Compatible with the following available fixings:

Push fit stems:

  • 10x20mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x22mm with 11.8 banded K290 4A
  • 11x26mm

Threaded stems:

  • 3/8-16x1"
  • 3/8x1"

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
