movetto 8
Little brother to the MOVE casters: only 37mm in diameter, but with an incredible high load capacity per caster!
37 mm wheel diameter and still 70 kg load bearing capacity per caster.
The standard stopper brake ensures that the caster and the piece of furniture will not roll away.
No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.
Sales are made to commercial customers only.
Technical Details
Product Type | Furniture caster |
Wheel diameter | 37mm | 1 ⅛" |
Load capacity | 70kg | 150 lbs. |
Overall height with fixing | 44,5mm |
Wheel: |
|
Wheel type | Soft wheel |
Wheel core / tread color | RAL 9005 Jet black / RAL 7022 Umbra grey |
Housing: |
|
Housing form | unhooded, with neck diameter |
Neck diameter | 16mm |
Housing material | High quality nylon |
Housing color | RAL 9005 Jet black |
Mobility concept | Stopper brake |
Fixing | No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,65mm |
Description | DUKF230 - 2X2NN |

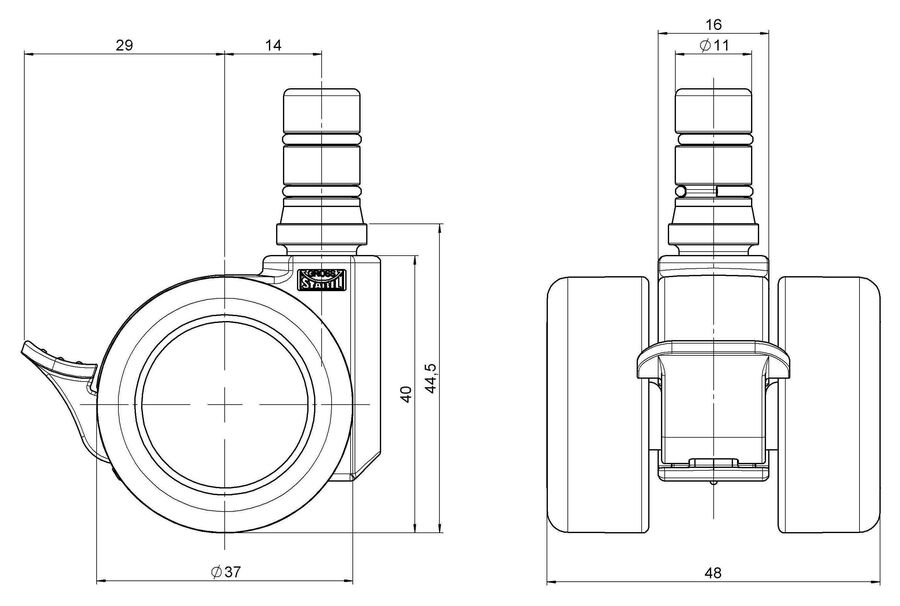

Technical Drawing
Fixings
Compatible with the following available fixings:
No-Noise™ Stem:
Push fit stems:
Threaded stems:
Square plates:
Caster cup:
Caster module:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
