movetto 8

Little brother to the MOVE casters: only 37mm in diameter, but with an incredible high load capacity per caster!

37 mm wheel diameter and still 70 kg load bearing capacity per caster.

No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 37mm | 1 ⅛"
Load capacity 70kg | 150 lbs.
Overall height with fixing 44,5mm

Wheel:


Wheel type Hard wheel
Wheel color RAL 9005 Jet black

Housing:


Housing form unhooded, with neck diameter
Neck diameter 16mm
Housing material High quality nylon
Housing color RAL 9005 Jet black
Mobility concept Freewheel
Fixing No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm
Description DDK 230 - 3X2NN

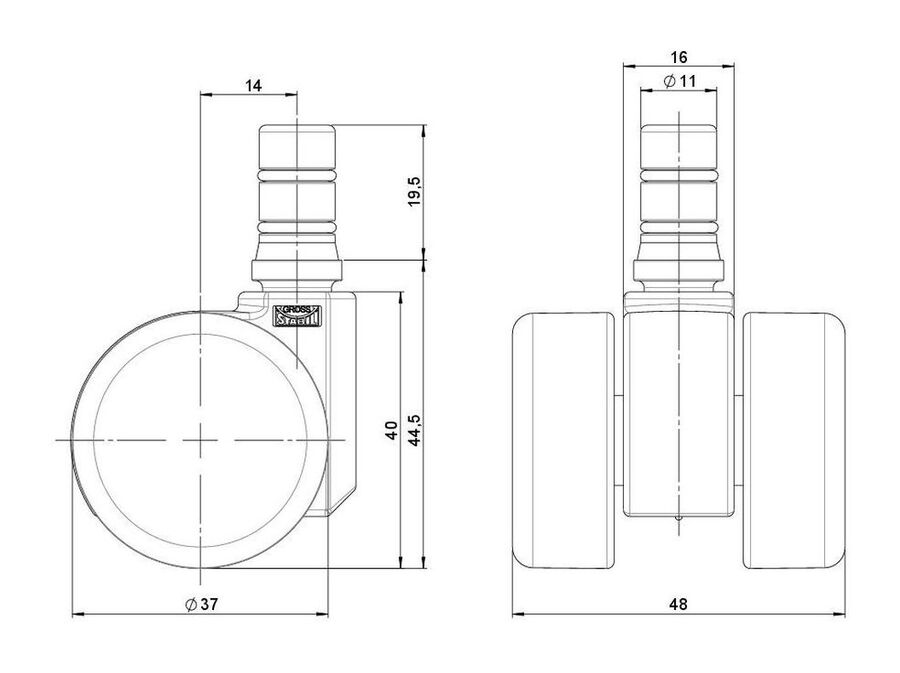

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.6mm circlip

Push fit stems:

  • 10x22mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x22mm with 11.8 banded K290 4A
  • 11x26mm

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm
  • 5/16-18x1"
  • 5/16-18x1/2"
  • 3/8-16x1"
  • 5/16-18x5/8"
  • 3/8-16x1/2"
  • 3/8-16x5/8"

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Caster cup:

  • 120x104mm

Caster module:

  • 400x70mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
