MOVE 60 classic

The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.

Innovative stopper brake designed for ease of use. The brake is easy to engage by pressing down on the bottom triangular portion. To release, just press on the upper portion.It is securely engaged and releases easily.

Available with Transport protector.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 60mm | 2 ½"
Load capacity 60kg | 132 lbs.
Overall height with fixing 70mm

Wheel:


Wheel type Hard wheel
Wheel color RAL 9016 Traffic white

Housing:


Housing form unhooded, with neck diameter
Neck diameter 20mm
Housing material High quality nylon
Housing color RAL 9016 Traffic white
Mobility concept Delta-Feststeller, RAL 9016 Traffic white
Fixing M10x15mm Threaded stem
Description DDKF560 -31 X10

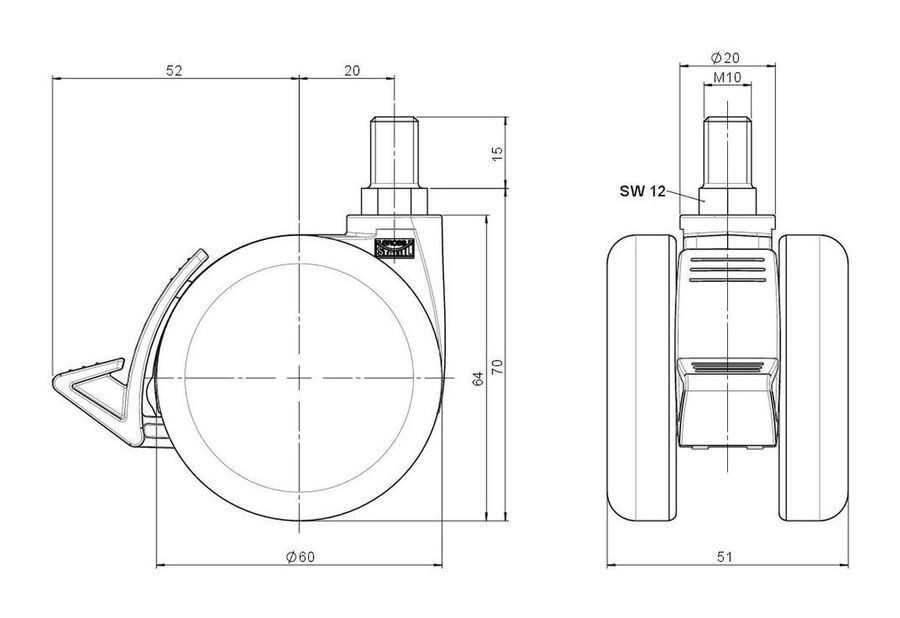

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.6mm circlip

Push fit stems:

  • 10x22mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x22mm with 11.8 banded K290 4A
  • 11x26mm

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm
  • 5/16-18x1"
  • 5/16-18x1/2"
  • 3/8-16x1"
  • 5/16-18x5/8"
  • 3/8-16x1/2"
  • 3/8-16x5/8"

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
