MOVE 60 classic

The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.

A must for every swivel chair: the unloaded braked function. The casters roll freely when loaded, but otherwise a resistance is activated and rolling away is prevented.

An essential for every office chair; it allows a chair to move freely when weight is applied, however, will not roll away when you stand up. A spring is inserted into the guide insert of the MOVE caster which adds resistance. The MOVE Technology’s guide insert separates the housing, axle, and wheel which also enables a quiet and smooth roll.

Available with Transport protector.

Technical Details

Product Type Chair caster
Wheel diameter 60mm
Load capacity 60kg
Overall height with fixing 70mm

Wheel:


Wheel type Hard wheel
Wheel color Other

Housing:


Housing form unhooded, with neck diameter
Neck diameter 20mm
Housing material High quality nylon
Housing color RAL 9016 Traffic white
Mobility concept Unloaded braked, rc®-System
Fixing M10x15mm Threaded stem
Description DDK 560 -31 X10

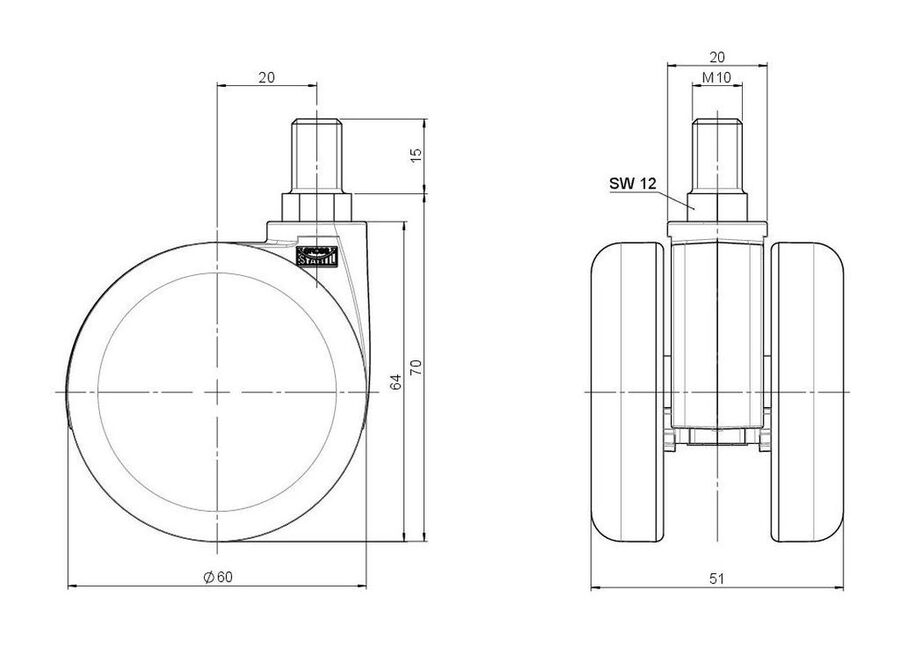

Technical Drawing
