MOVE 60 classic
The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.
A must for every swivel chair: the unloaded braked function. The casters roll freely when loaded, but otherwise a resistance is activated and rolling away is prevented.
An essential for every office chair; it allows a chair to move freely when weight is applied, however, will not roll away when you stand up. A spring is inserted into the guide insert of the MOVE caster which adds resistance. The MOVE Technology’s guide insert separates the housing, axle, and wheel which also enables a quiet and smooth roll.
No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.
Available with Transport protector.
Sales are made to commercial customers only.
Technical Details
Product Type | Chair caster |
Wheel diameter | 60mm | 2 ½" |
Load capacity | 60kg | 132 lbs. |
Overall height with fixing | 67mm |
Wheel: |
|
Wheel type | Soft wheel |
Wheel core / tread color | RAL 9005 Jet black / RAL 7022 Umbra grey |
Housing: |
|
Housing form | unhooded, with neck diameter |
Neck diameter | 36mm |
Housing material | High quality nylon |
Housing color | RAL 9005 Jet black |
Mobility concept | Unloaded braked, rc®-System |
Fixing | No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm |
Description | DUKG560 - 2X2NN |

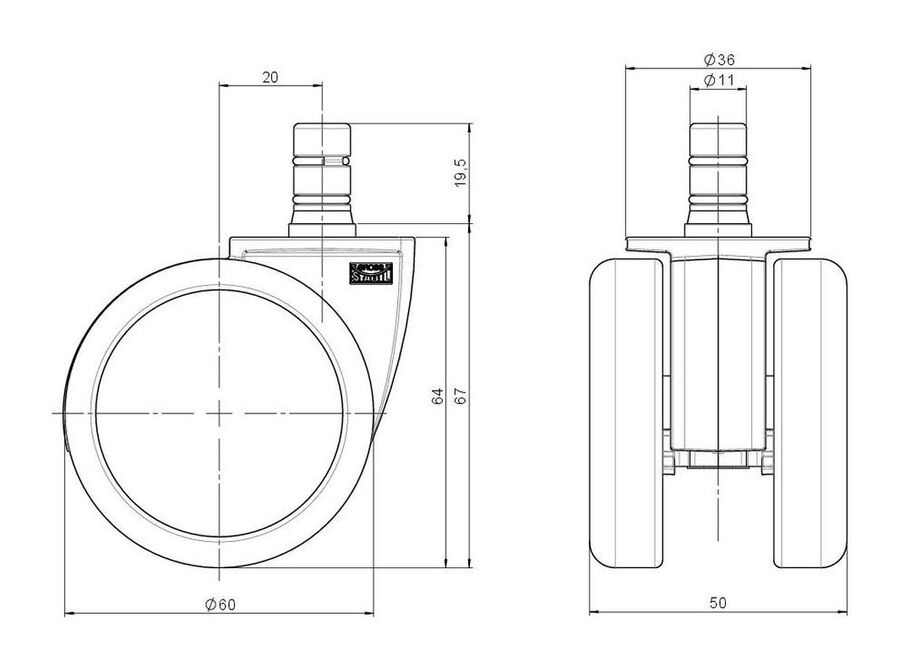

Technical Drawing
Fixings
Compatible with the following available fixings:
No-Noise™ Stem:
Push fit stems:
Threaded stems:
Square plates:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
