DUETTO 104 Wheel

Rounding off the product portfolio upwards: DUETTO is perfect for all mobile applications that require a larger size. DUETTO gives medical equipment, media carriers, large tabletop systems, and more applications a secure hold with all the mobility they need.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 100mm | 4"
Load capacity 100kg | 220 lbs.
Overall height with fixing 121mm

Wheel:


Wheel type Soft wheel
Wheel core / tread color RAL 9005 Jet black / RAL 9005 Jet black

Housing:


Housing form unhooded, with neck diameter
Neck diameter 46mm
Housing material High quality nylon
Housing color RAL 9005 Jet black
Mobility concept Freewheel
Fixing M10x15mm Threaded stem
Description K 100-104 X10

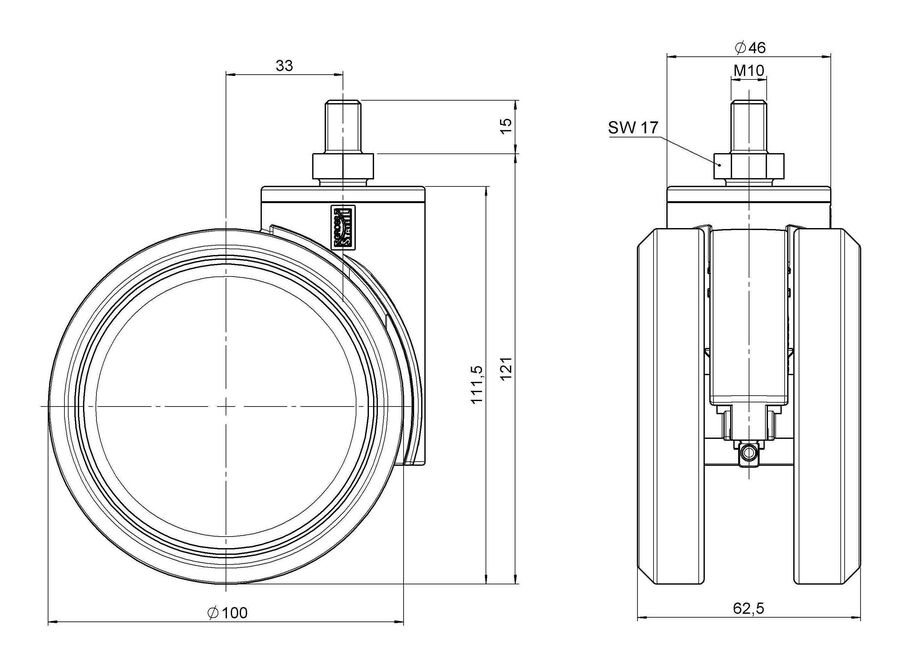

Technical Drawing

Fixings

Compatible with the following available fixings:

Push fit stems:

  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x34mm with 11.8mm circlip
  • 14x48mm with 15mm circlip

Threaded stems:

  • M10x15mm
  • M10x20mm
  • M10x35mm
  • M12x15mm
  • M12x20mm
  • M12x30mm

Square plates:

  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
