DUETTO 104 Wheel
Rounding off the product portfolio upwards: DUETTO is perfect for all mobile applications that require a larger size. DUETTO gives medical equipment, media carriers, large tabletop systems, and more applications a secure hold with all the mobility they need.
Sales are made to commercial customers only.
Technical Details
Product Type | Furniture caster |
Wheel diameter | 100mm | 4" |
Load capacity | 100kg | 220 lbs. |
Overall height with fixing | 121mm |
Wheel: |
|
Wheel type | Soft wheel |
Wheel core / tread color | RAL 7035 Light grey / RAL 9005 Jet black |
Housing: |
|
Housing form | unhooded, with neck diameter |
Neck diameter | 46mm |
Housing material | High quality nylon |
Housing color | RAL 7035 Light grey |
Mobility concept | Freewheel |
Fixing | M10x15mm Threaded stem |
Description | K 100-104 X10 |

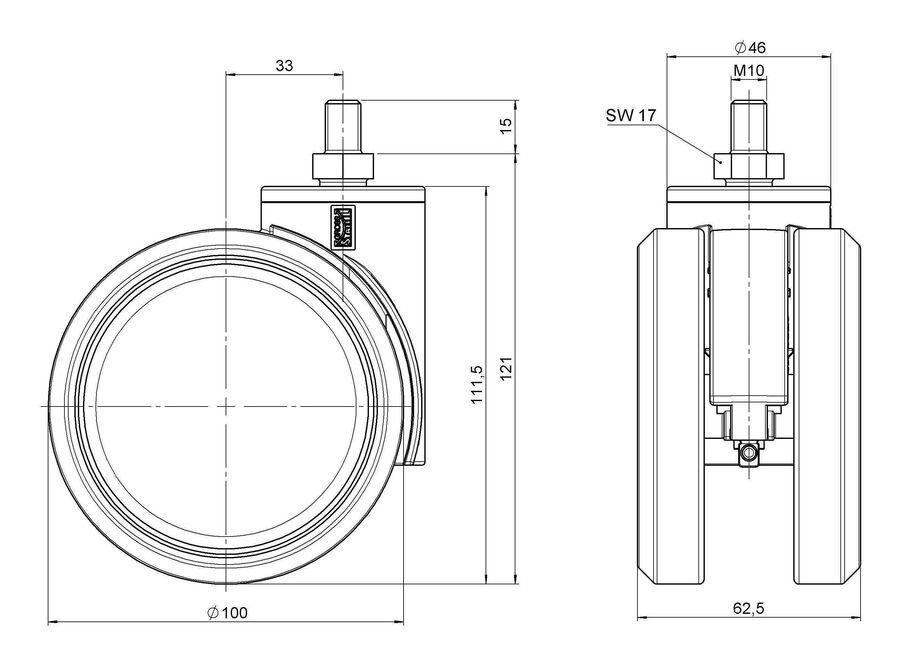

Technical Drawing
Fixings
Compatible with the following available fixings:
Push fit stems:
Threaded stems:
Square plates:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
