MOVE 100

The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 100mm | 4"
Load capacity 100kg | 220 lbs.
Overall height with fixing 123mm

Wheel:


Wheel type Soft wheel
Wheel core / tread color RAL 9006 White aluminium / RAL 9005 Jet black

Housing:


Housing form unhooded, with neck diameter
Neck diameter 46mm
Housing material High quality nylon
Housing color RAL 9006 White aluminium
Mobility concept Freewheel
Fixing M12x20mm Threaded stem
Description K 100-106 X12

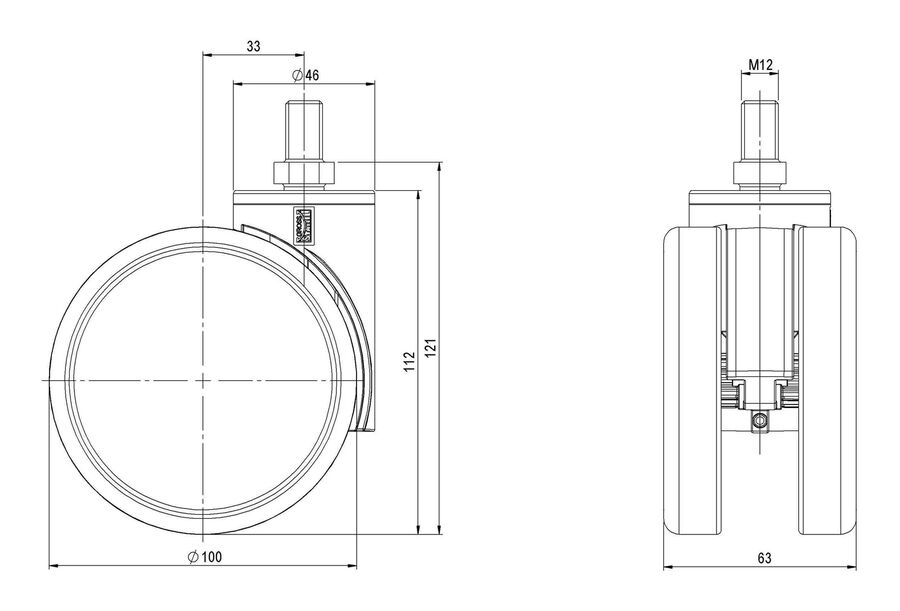

Technical Drawing

Fixings

Compatible with the following available fixings:

Push fit stems:

  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x34mm with 11.8mm circlip
  • 14x48mm with 15mm circlip

Threaded stems:

  • M10x15mm
  • M10x20mm
  • M10x35mm
  • M12x15mm
  • M12x20mm
  • M12x30mm

Square plates:

  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
