DUETTO 105 Wheel
Rounding off the product portfolio upwards: DUETTO is perfect for all mobile applications that require a larger size. DUETTO gives medical equipment, media carriers, large tabletop systems, and more applications a secure hold with all the mobility they need.
Innovative stopper brake designed for ease of use. The brake is easy to engage by pressing down on the bottom triangular portion. To release, just press on the upper portion.It is securely engaged and releases easily.
Sales are made to commercial customers only.
Technical Details
| Product Type | Furniture caster |
| Wheel diameter | 100mm | 4" |
| Load capacity | 100kg | 220 lbs. |
| Overall height with fixing | 123mm |
Wheel: |
|
| Wheel type | Soft wheel |
| Wheel core / tread color | RAL 9005 Jet black / RAL 9005 Jet black |
Housing: |
|
| Housing form | unhooded, with neck diameter |
| Neck diameter | 46mm |
| Housing material | High quality nylon |
| Housing color | RAL 9005 Jet black |
| Mobility concept | Delta-Feststeller, RAL 9005 Jet black |
| Fixing | 60x60mm Plate |
| Description | KFD 100-105 X 1 |

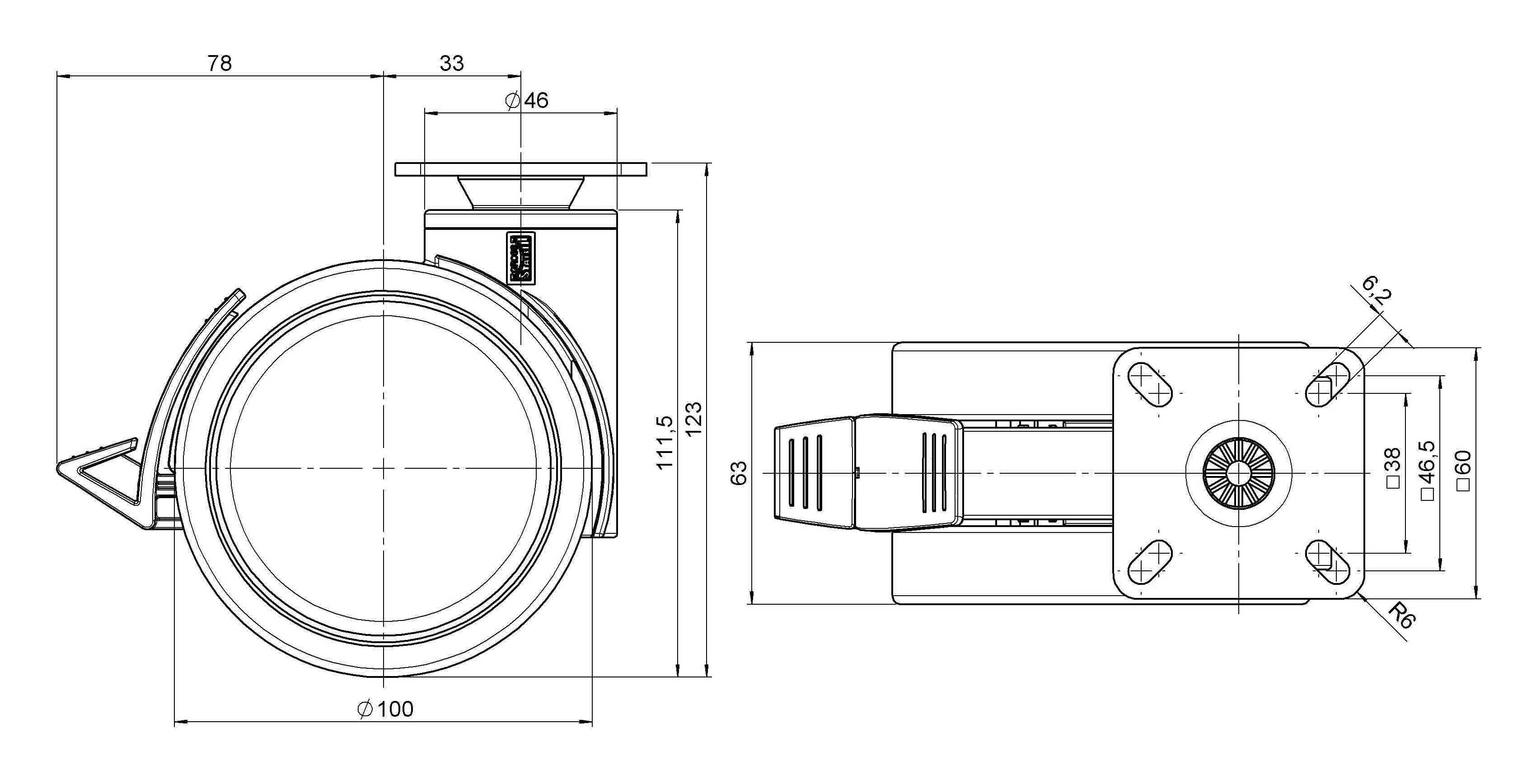

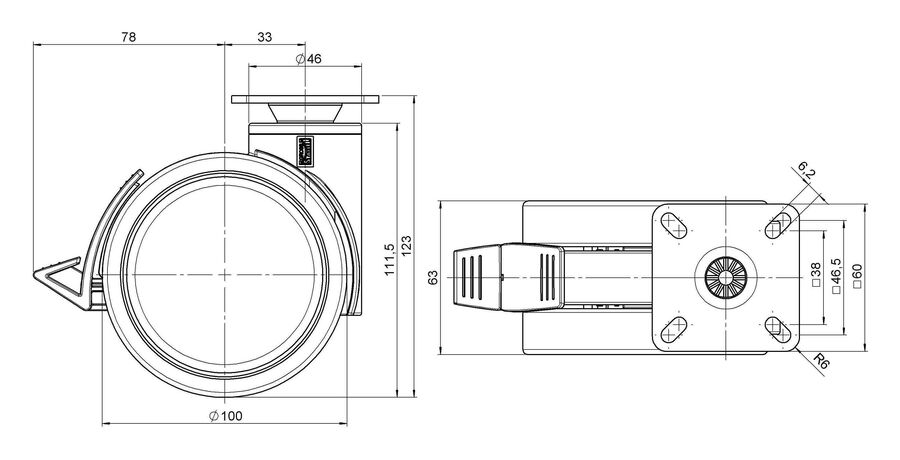

Technical Drawing
Fixings
Compatible with the following available fixings:
Push fit stems:
Threaded stems:
Square plates:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
Additional items in this product family:
