STATO F36

STATO complements the Traditional casters as a matching glide, either in plastic or chrome.

The standard for this glide is a flat bottom part.

Sales are made to commercial customers only.

Technical Details

Product Type Gleiter
Glide bottom diameter 55mm
Load capacity 60kg
Overall height with fixing 59mm

Housing:


Bottom standard
Upper glide material Polyamid
Upper glide color Black
Lower glide material Polyamide
Lower glide color Black
Fixing 11x22mm Push-fit stem
Description F36BG1X2B-WC

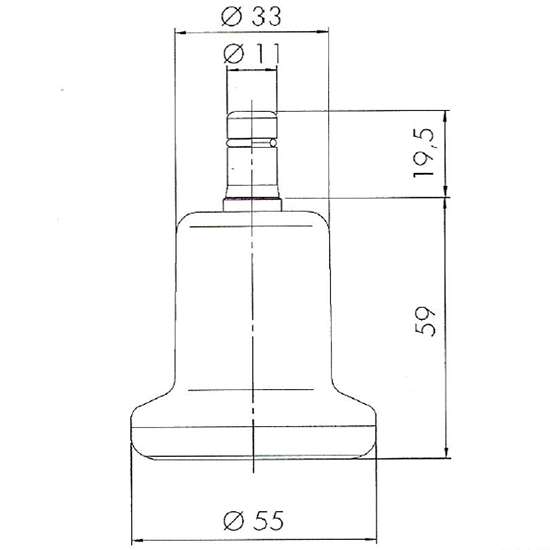

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.6mm circlip
  • 11x19.5mm with 11.8mm circlip

Push fit stems:

  • 10x22mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x22mm with 11.8 banded K290 4A
  • 11x26mm

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm
  • 5/16-18x1"
  • 5/16-18x1/2"
  • 3/8-16x1"
  • 5/16-18x5/8"
  • 3/8-16x1/2"
  • 3/8-16x5/8"

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
