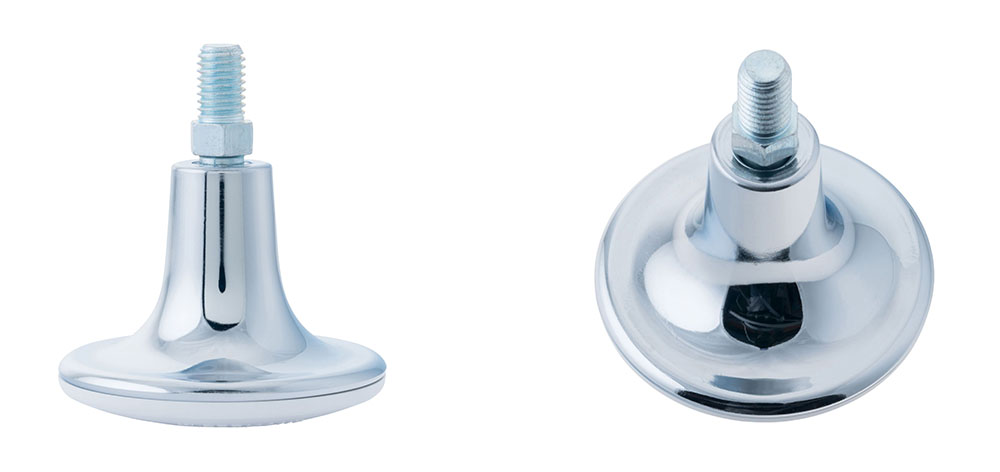

STATO F001

STATO complements the Traditional casters as a matching glide, either in plastic or chrome.

For a polished appearance in a class of its own! Elegant Traditionals are our original high-quality casters with chrome accents.
These casters have been popular with our customers for many years in the past and continue to be a staple today.

The standard for this glide is a flat bottom part.

Sales are made to commercial customers only.

Technical Details

Product Type Glide
Glide bottom diameter 65mm
Load capacity 75kg
Overall height with fixing 58mm

Housing:


Bottom standard
Upper glide material Zinc die-cast
Upper glide color Shiny chrome
Lower glide material High quality plastic
Lower glide color Other
Fixing Standard, M10x15mm Threaded stem, without circlip
Description F 1 BG 1X10

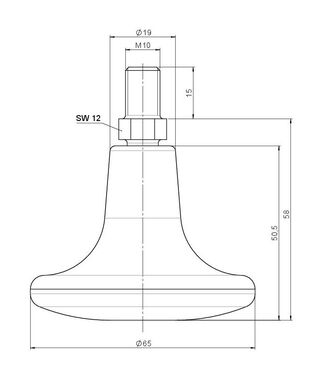

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.6mm circlip

Push fit stems:

  • 10x22mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip

Threaded stems:

  • M8x15mm
  • M8x25mm
  • M10x15mm
  • M10x25mm
  • 5/16-18x5/8"
  • 3/8-16x5/8"
  • 3/8-16x1/2"
  • 3/8-16x1"

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
