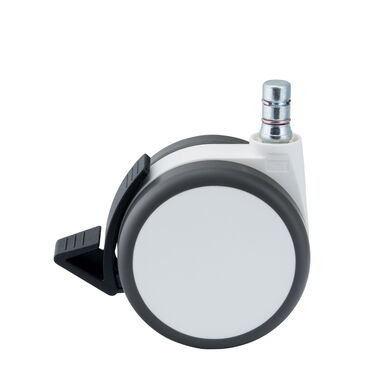

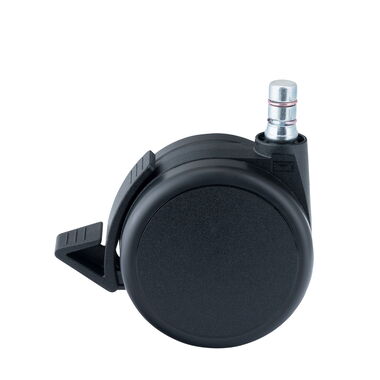

MOVE 75 classic

The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.

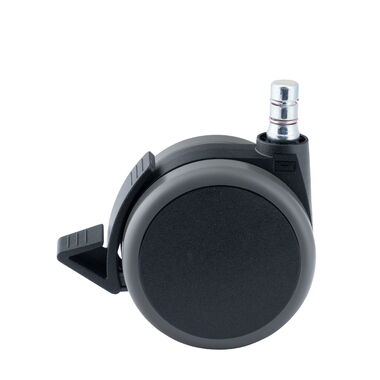

Innovative stopper brake designed for ease of use. The brake is easy to engage by pressing down on the bottom triangular portion. To release, just press on the upper portion.It is securely engaged and releases easily.

No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.

Available with Transport protector.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 75mm | 3"
Load capacity 75kg | 165 lbs.
Overall height with fixing 82,5mm

Wheel:


Wheel type Soft wheel
Wheel core / tread color RAL 9006 White aluminium / RAL 9005 Jet black

Housing:


Housing form unhooded, with neck diameter
Neck diameter 20mm
Housing material High quality nylon
Housing color RAL 9006 White aluminium
Mobility concept Delta-Feststeller, RAL 9005 Jet black
Fixing No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm
Description DUKF575 - 2X2NN

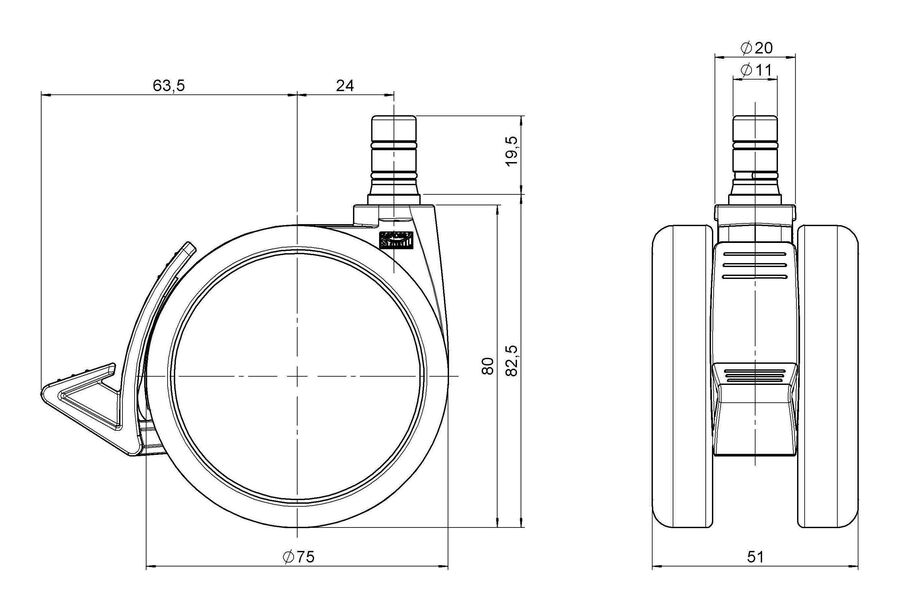

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.6mm circlip

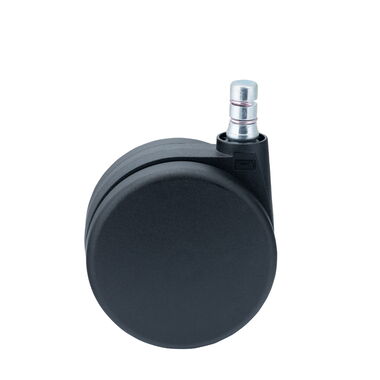

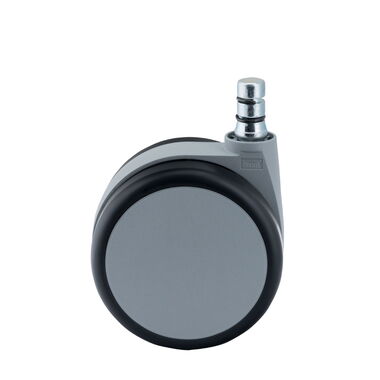

Push fit stems:

  • 10x22mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x22mm with 11.8 banded K290 4A
  • 11x26mm

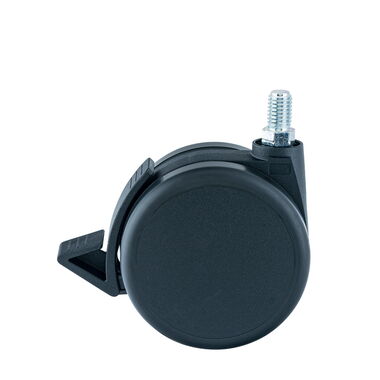

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm
  • 5/16-18x1"
  • 5/16-18x1/2"
  • 3/8-16x1"
  • 5/16-18x5/8"
  • 3/8-16x1/2"
  • 3/8-16x5/8"

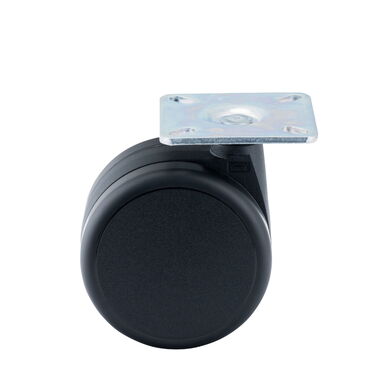

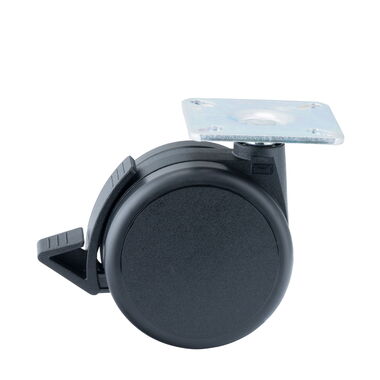

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
