Standard D080

Some of the Gross Stabil products have been in production and unchanged for over 15 years. These casters have been popular with our customers in the past and continue to be a staple today. Satisfied customers are the best proof of quality.

Traditionals are our original and extensive basic caster line - a proven standard.
These casters have been popular with our customers for many years in the past and continue to be a staple today.

The sleek design of our Slim Line caster has been developed for furniture and can be used on almost all flooring types. It is an exceptional option for use on office, educational, or healthcare furniture.

The standard stopper brake ensures that the caster and the piece of furniture will not roll away.

No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 80mm | 3.15"
Load capacity 80kg | 176 lbs.
Overall height with fixing 102,5mm

Wheel:


Wheel type Soft wheel
Wheel core / tread color RAL 9006 White aluminium / RAL 9005 Jet black

Housing:


Housing form unhooded, with neck diameter
Neck diameter 22mm
Housing material High quality nylon
Housing color RAL 9006 White aluminium
Mobility concept Stopper brake
Fixing No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm
Description DUKF 80 -27X2NN

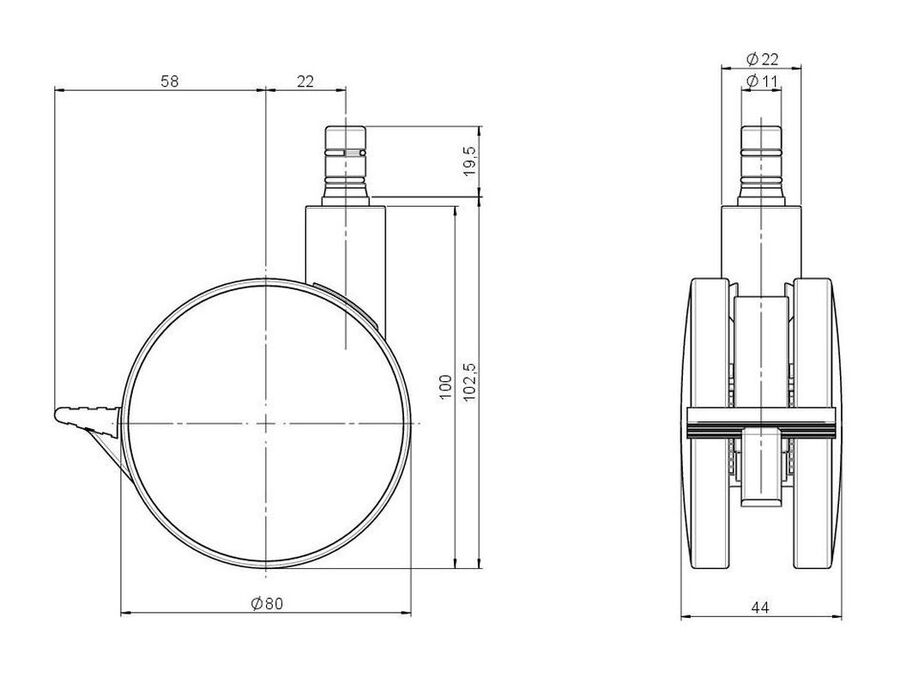

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.6mm circlip

Push fit stems:

  • 10x22mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x22mm with 11.8 banded K290 4A
  • 11x26mm

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm
  • 5/16-18x1"
  • 5/16-18x1/2"
  • 3/8-16x1"
  • 5/16-18x5/8"
  • 3/8-16x1/2"
  • 3/8-16x5/8"

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
