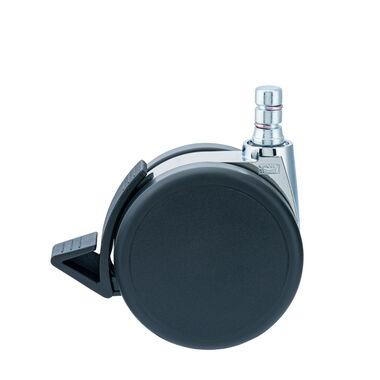

MOVE 75 elegance
The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.
MOVE elegance sets new benchmarks. The elegant but extremely robust zinc housing and the caster with chrome accents ensure a classy appearance for the "Executive" segment. Available in matte chrome and shiny chrome, MOVE elegance enhances any premium product.
No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.
Sales are made to commercial customers only.
Technical Details
| Product Type | Chair caster |
| Wheel diameter | 75mm | 3" |
| Load capacity | 75kg | 165 lbs. |
| Overall height with fixing | 82,5mm |
Wheel: |
|
| Wheel type | Hard wheel |
| Wheel color | RAL 9005 Jet black |
Housing: |
|
| Housing form | unhooded, with neck diameter |
| Neck diameter | 20mm |
| Housing material | Zinc die-cast |
| Housing color | Shiny chrome |
| Mobility concept | Freewheel |
| Fixing | No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm |
| Description | DDZB675 - 3X2NN |

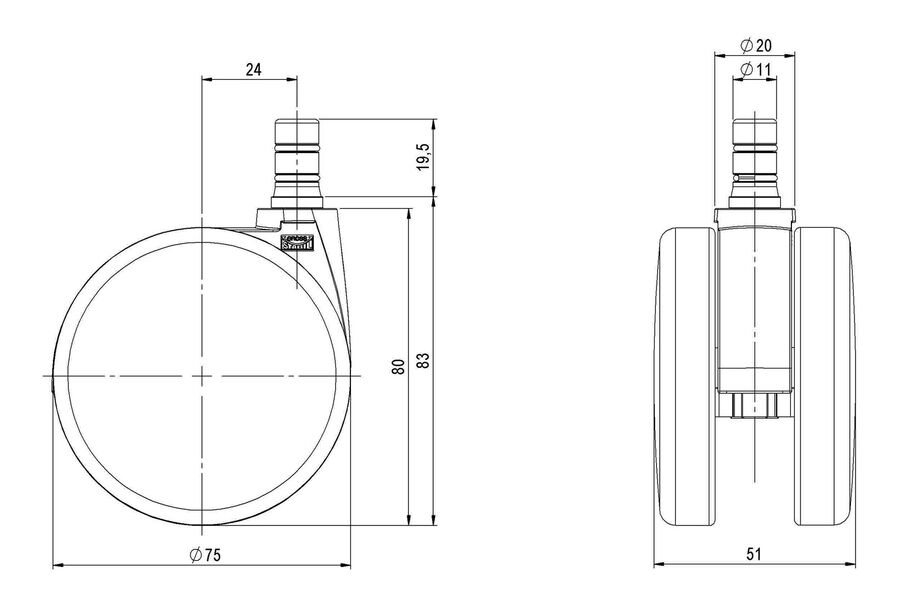

Technical Drawing
Fixings
Compatible with the following available fixings:
No-Noise™ Stem:
Push fit stems:
Threaded stems:
Square plates:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
Additional items in this product family:
