MOVE 50 classic

The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.

A must for every swivel chair: the unloaded braked function. The casters roll freely when loaded, but otherwise a resistance is activated and rolling away is prevented.

An essential for every office chair; it allows a chair to move freely when weight is applied, however, will not roll away when you stand up. A spring is inserted into the guide insert of the MOVE caster which adds resistance. The MOVE Technology’s guide insert separates the housing, axle, and wheel which also enables a quiet and smooth roll.

No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.

Sales are made to commercial customers only.

Technical Details

Product Type Chair caster
Wheel diameter 50mm | 2"
Load capacity 50kg | 110 lbs.
Overall height with fixing 60mm

Wheel:


Wheel type Soft wheel
Wheel core / tread color RAL 9005 Jet black / RAL 9005 Jet black

Housing:


Housing form hooded, with neck diameter
Neck diameter 36mm
Housing material High quality nylon
Housing color RAL 9005 Jet black
Mobility concept Unloaded braked, rc®-System
Fixing No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm
Description DUKG518 -24X2NN

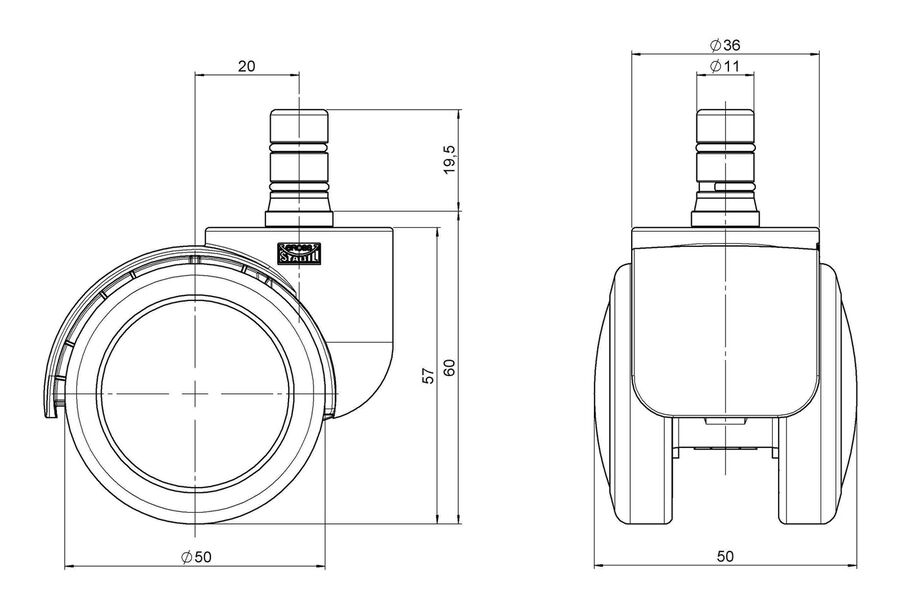

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.6mm circlip

Push fit stems:

  • 10x22mm with 10.3mm circlip
  • 10x22mm with 10.5mm circlip
  • 11x19.5mm with 11.4mm circlip
  • 11x19.5mm with 11.8mm circlip
  • 11x22mm with 11.4mm circlip
  • 11x22mm with 11.6mm circlip
  • 11x22mm with 11.8mm circlip
  • 11x22mm with 11.8 banded K290 4A
  • 11x26mm

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm
  • 5/16-18x1"
  • 5/16-18x1/2"
  • 3/8-16x1"
  • 5/16-18x5/8"
  • 3/8-16x1/2"
  • 3/8-16x5/8"

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
